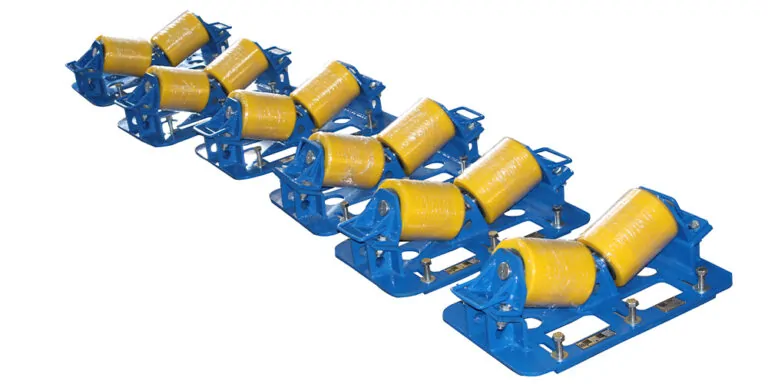

Heavy Duty Beam Clamp Rigging Roller

SPM EQUIPMENT’s engineering department takes a proactive approach to addressing the distinct challenges that often arise in the pipeline industry. This results in efficient design, fabrication, and timely delivery of customized equipment to meet specific requirements.

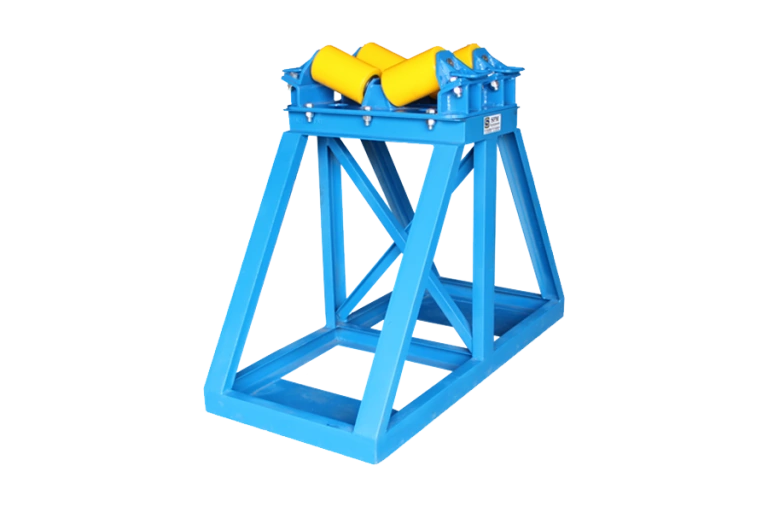

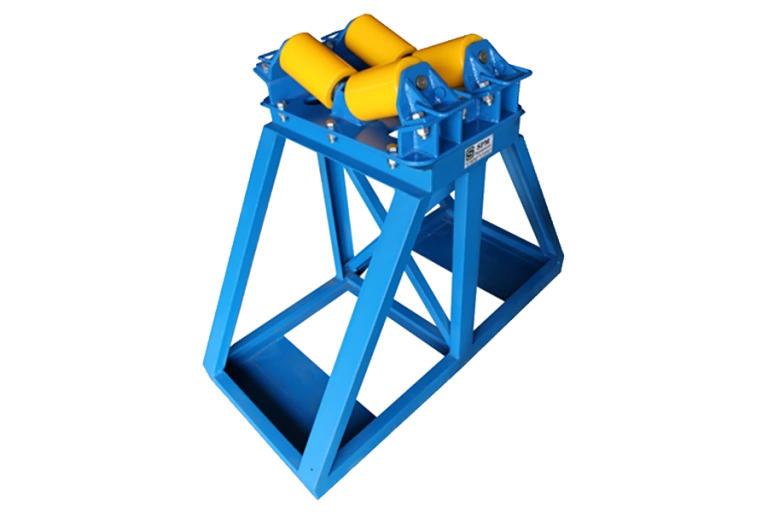

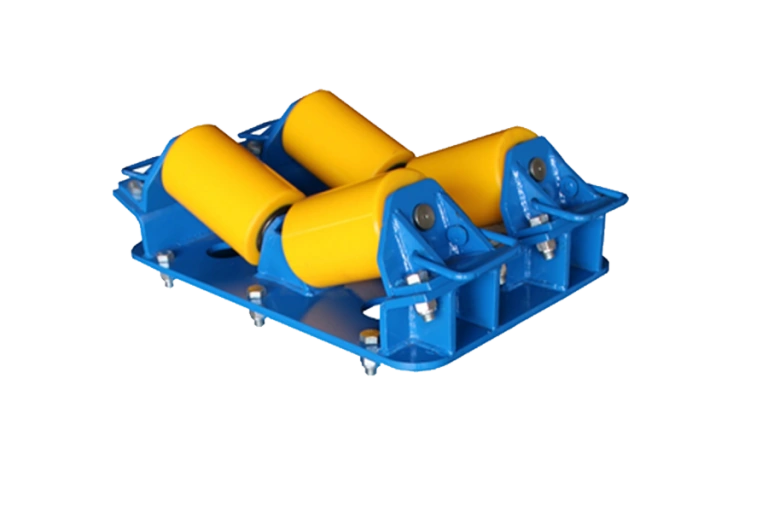

We manufacture and supply Heavy Duty Beam Clamp Rigging Roller that are specifically designed to vertically pull or push large diameter pipes. These rollers can also be adapted for use as beam clamp rollers for pipe rack installation, or with a base for pipeline staging and directional drilling. Our rollers are coated with urethane and have sealed bearings to ensure smooth and damage-free rolling. All components are replaceable with a quick bolt-together design. Our rollers can accommodate pipes from 2″ to 48″ with a capacity of up to 33000 lbs. When used as beam clamp rollers, they securely fasten to both sides of the I-beam flange, providing a much safer option than conventional clamping rollers. Our innovative engineering department provides efficient design, fabrication, and timely delivery of custom equipment to address the unique challenges that inevitably arise in the pipeline industry.

Feature & Advantanges :

  • Each roller is equipped with two bearings to ensure smooth rolling without resistance.
  • The beam clamp rollers come equipped with a distinctive double-sided clamping system that can securely fasten the roller onto the flanges of beams up to 12 inches in size.
  • Our design incorporates replaceable wheels and housing, making it easy to remove them by simply loosening two bolts.
  • All models are equipped with convenient carry handles..
